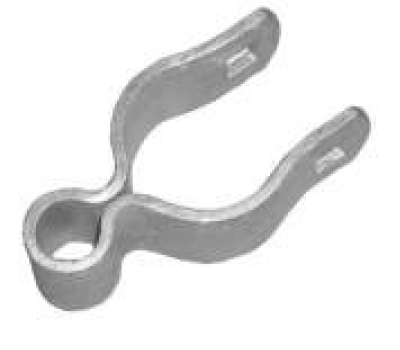

1-5/8" Female Hinge

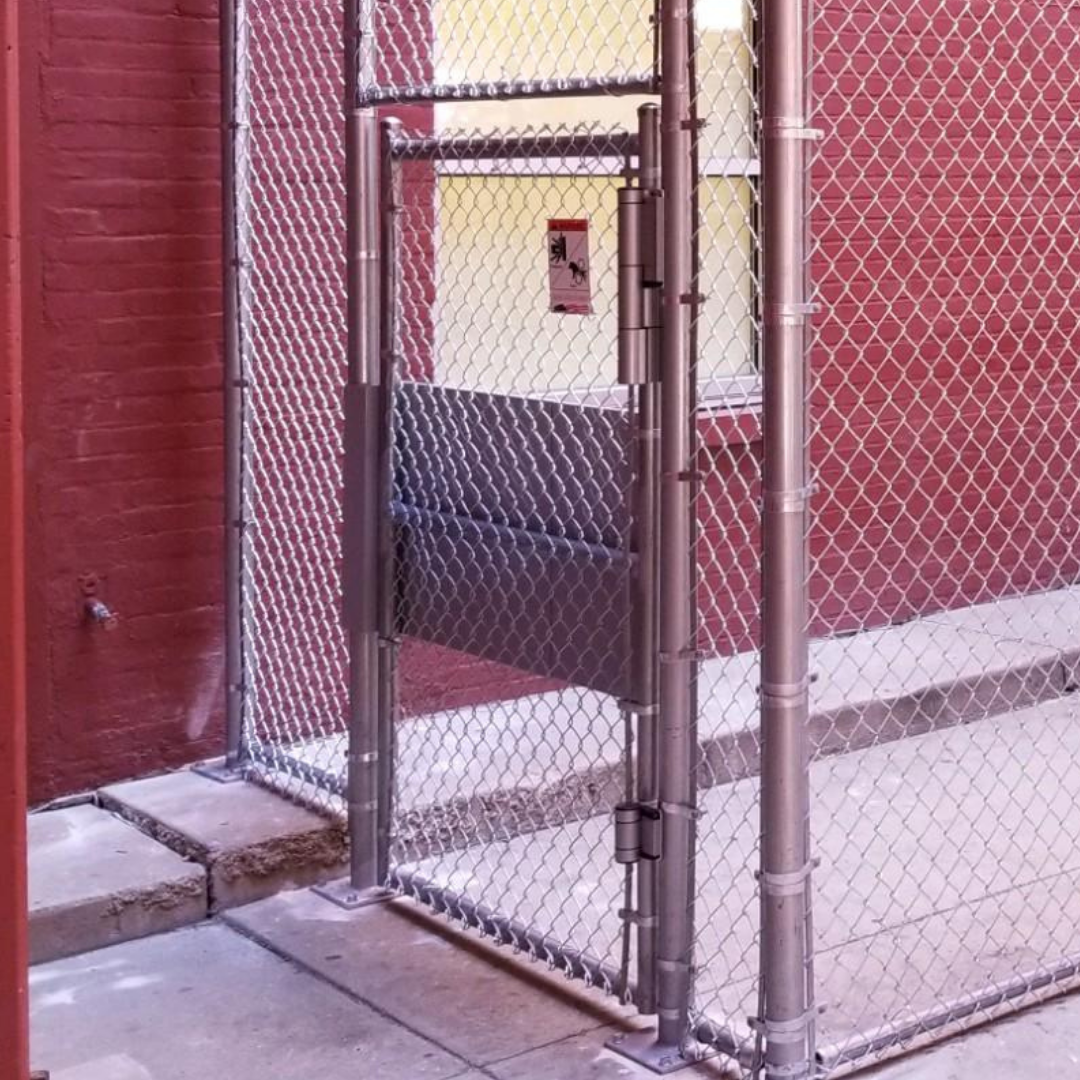

Gates are excellent security additions for residential and commercial settings, but only if they're able to open and close efficiently. This is true not only of permanently installed gates, but also the gates used on temporary fencing. When it comes to the latter, the 1-5/8" Steel Female Hinge is an essential part.

This hinge is designed to provide reliable support and easy gate installation in both temporary and semi-permanent settings. Built with precision and strength in mind, it's for construction sites, agricultural fencing, event perimeters, and temporary enclosures. Crafted from heavy-duty galvanized steel, the female hinge is resistant to rust, corrosion, and wear, ensuring long-lasting performance even in demanding outdoor environments. Its rugged design is capable of withstanding harsh weather conditions, heavy usage, and constant repositioning, making it the perfect choice for professionals who need durability they can trust.

The hinge features a streamlined design that allows for quick and secure installation. It is specifically engineered to work seamlessly with a corresponding male hinge, providing a smooth pivot point that ensures easy opening and closing of temporary gates. Its versatile design accommodates a range of gate sizes and weights, offering exceptional adaptability for a variety of applications. Whether you're securing livestock, managing site access, or creating a controlled event entry, this hinge delivers unmatched efficiency and convenience.

For temporary gate systems that require strength, reliability, and flexibility, the Female Hinge for Temporary Gates is the ultimate solution. Designed to perform and built to last, it is the perfect choice for professionals and DIY users alike.

• Rust resistant
• Steel construction
• Carriage Nut & Bolt sold separately, Part 11173

Details

How the part fits? This female hinge connects to a gate frame with a 1-5/8" outside diameter.

Where is it installed? The female hinge clamps to the gate frame.

How many do you need? For most gates, two female hinges and two male hinges are required. For gates taller than 6 feet, additional hinges are recommended.

Specifications

1-5/8" inside diameter; .52 lbs.

How To

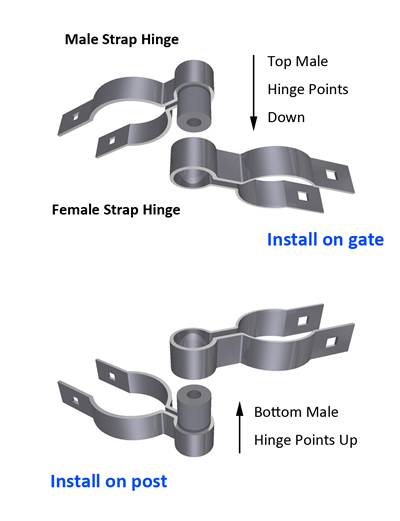

The 1-5/8” female hinge clamps to a gate frame with a 1-5/8" outside diameter. The pin of the male hinge (sold separately) connects to the female hinge, while the male hinge clamps to the gate post. This connection allows the gate to freely open and close.
